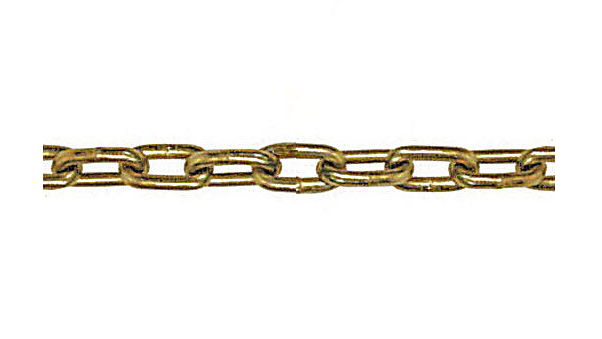

WEISNER - Transport chain – Grade 70
2019-02-18 14:16:08FEATURES
The 70 grade chains are extremely strong for their light weight and are mainly used for loading on platform trucks in the transportation field. They are also widely used on farms, for towing and in construction. The ratio of great strength versus the weight of the 70 grade chains is achieved through a special heat treatment. They resist wear thanks to their exceptional hardness properties.
THE CHAIN IS EMBOSSED ‘‘G7’’ OR ‘‘G70’’
Sold at the foot or barrel
HARDWARE :
• Carbon Steel
FINISH :
• Yellow chromate
ACCESSORIES :
• Can be supplied in assembly with forged clevis hooks at each end and
other required accessories.
Dimensions
STOCK NO.
FEET PER
BARREL
WEIGHT
WORKING LOAD LIMIT
LINK PER FOOT
CHAIN DIAMETER
grade
in
mm
lb
kg
lb
kg
1⁄4
7
70
GR701/4WS-4A
400
0.94
0.42
3,150
1,430
12
5⁄16
8
70
GR705/16WS-4A
550
1.11
0.50
4,700
2,130
9.75
3⁄8
10
70
GR703/8WS-4A
400
1.50
0.68
6,600
2,990
9
1⁄2
13
70
GR701/2WS-4A
200
2.60
1.18
11,300
5,130
6.75
Safety factor: 4/1
-
