3. ASSEMBLY WITH 3/8 CHAIN
2018-08-17 13:24:47FEATURES
Grade 70 chains are extremely strong for their light weight and are mainly used for loading on platform trucks in the transportation. They are also widely used on farms, for logging, for towing and in construction. The ratio of great strength versus weight of Grade 70 chains is achieved through special heat treatment. They resist wear thanks to their exceptional hardness properties.
MATERIAL: Carbon steel
FINISH: Yellow chromate conversion coating
ACCESSORY: Can be supplied in assembly with latch hooks at each end
HALLMARKING: "C7" embossed chain
NOT DESIGNED FOR LIFTING
Other lengths available on request

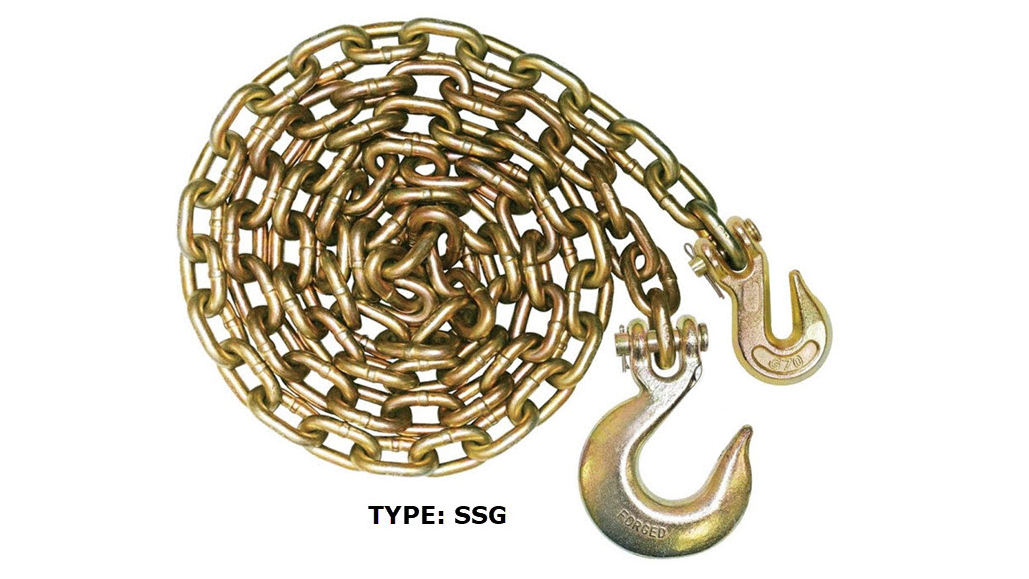

- TYPE SSG ASSEMBLy -
STOCK NO.
DESCRIPTION
WLL
WEIGHT
(LB.)
SSG3/80096M01-4B
GR 70 ASSEMBLY TYPE: SSG 3/8’’ X 8’ SLIP HOOK/GRAB HOOK
5250 LB. / 2380 KG.
15.86
SSG3/80120M01-4B
GR 70 ASSEMBLY TYPE: SSG 3/8’’ X 10’ SLIP HOOK/GRAB HOOK
5250 LB. / 2380 KG.
18.88
SSG3/80144M01-4B
GR 70 ASSEMBLY TYPE: SSG 3/8’’ X 12’ SLIP HOOK/GRAB HOOK
5250 LB. / 2380 KG.
21.90
SSG3/80180M01-4B
GR 70 ASSEMBLY TYPE: SSG 3/8’’ X 15’ SLIP HOOK/GRAB HOOK
5250 LB. / 2380 KG.
26.40
SSG3/80240M01-4B
GR 70 ASSEMBLY TYPE: SSG 3/8’’ X 20’ SLIP HOOK/GRAB HOOK
5250 LB. / 2380 KG
33.90
** NOT DESIGNED FOR LIFTING **
Safety factor: 4/1 - Do not exceed maximum rated capacities - tag included on each assembly

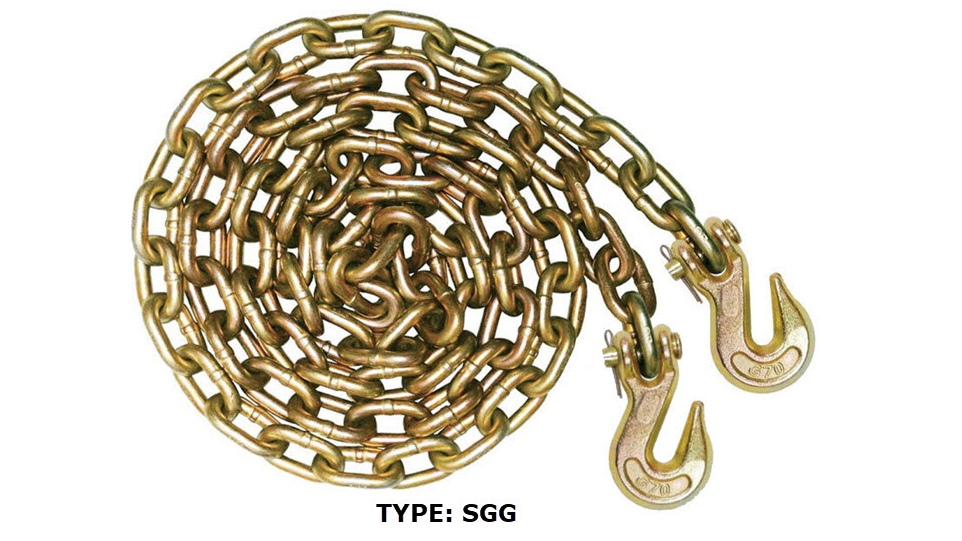

- TYPE SGG ASSEMBLy -
STOCK NO.
DESCRIPTION
WLL
WEIGHT
(LB.)
SGG3/80096M01-4B
GR 70 ASSEMBLY TYPE: SGG 3/8’’ X 8’ GRAB HOOK/GRAB HOOK
6600 LB. / 2995 KG.
15.10
SGG3/80120M01-4B
GR 70 ASSEMBLY TYPE: SGG 3/8’’ X 10’ GRAB HOOK/GRAB HOOK
6600 LB. / 2995 KG.
18.03
SGG3/80144M01-4B
GR 70 ASSEMBLY TYPE: SGG 3/8’’ X 12’ GRAB HOOK/GRAB HOOK
6600 LB. / 2995 KG.
21.05
SGG3/80180M01-4B
GR 70 ASSEMBLY TYPE: SGG 3/8’’ X 15’ GRAB HOOK/GRAB HOOK
6600 LB. / 2995 KG.
25.55
SGG3/80240M01-4B
GR 70 ASSEMBLY TYPE: SGG 3/8’’ X 20’ GRAB HOOK/GRAB HOOK
6600 LB. / 2995 KG.
33.05
** NOT DESIGNED FOR LIFTING **
Safety factor: 4/1 - Do not exceed maximum rated capacities - tag included on each assembly

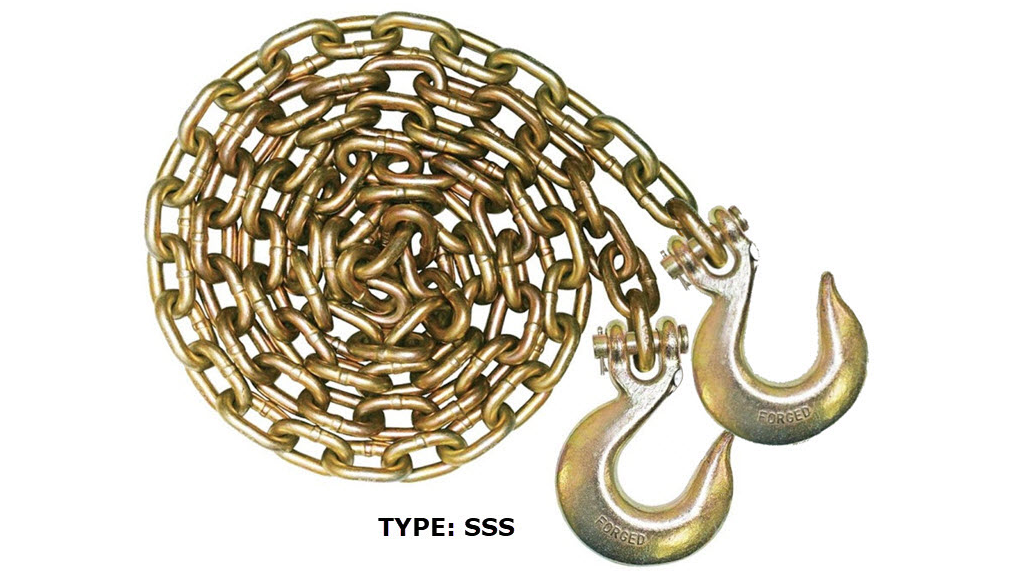

- TYPE SSS ASSEMBLy -
STOCK NO.
DESCRIPTION
WLL
WEIGHT
(LB.)
SSS3/80096M01-4B
GR 70 ASSEMBLY TYPE: SSS 3/8’’ X 8’ SLIP HOOK/SLIP HOOK
5250 LB. / 2380 KG.
15.73
SSS3/80120M01-4B
GR 70 ASSEMBLY TYPE: SSS 3/8’’ X 10’ SLIP HOOK/SLIP HOOK
5250 LB. / 2380 KG.
18.69
SSS3/80144M01-4B
GR 70 ASSEMBLY TYPE: SSS 3/8’’ X 12’ SLIP HOOK/SLIP HOOK
5250 LB. / 2380 KG.
21.72
SSS3/80180M01-4B
GR 70 ASSEMBLY TYPE: SSS 3/8’’ X 15’ SLIP HOOK/SLIP HOOK
5250 LB. / 2380 KG.
26.22
SSS3/80240M01-4B
GR 70 ASSEMBLY TYPE: SSS 3/8’’ X 20’ SLIP HOOK/SLIP HOOK
5250 LB. / 2380 KG.
33.72
** NOT DESIGNED FOR LIFTING **
Safety factor: 4/1 - Do not exceed maximum rated capacities - tag included on each assembly
-
