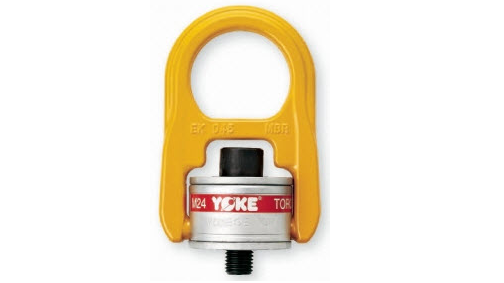

YOKE: 8-204 SWIVEL HOIST RING
2017-12-21 14:07:16FEATURES
• All YOKE Swivel Hoist Rings meet or exceed all the requirement
of ASME B30.26
• Hoist Ring Bail are designed by forged alloy steel, quenched and tempered
• Each forged parts and cap screw with Batch code links to Test Certificate sheet
• Hoist Rings are 360°swivel with 180°pivot function
• Bolt are UNC thread, specification is a grade 8 alloy socket head cap screw per
ASTM A 574
• Proof Load individually to 2.5 times Working Load Limit and certified
• 100% magnaflux crack detection
8-204 UNC THREADSNo. PRODUIT
NO. UPC
CMU
(LBS.)
COUPLE DE SERRAGE
LBS.PI.

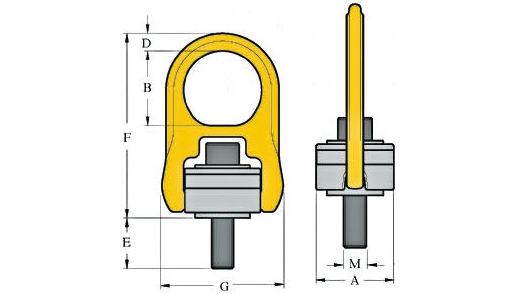

Dimensions (po.)
POIDS
(LBS.)
FILETS
A
B
D
E
F
G
HR1255/16182YO-5P
8-204-004
800
7
5/16 - 18 UNC
1.57
1.61
0.35
0.71
4.02
2.56
0.9 0
HR1253/8162YO-5P
8-204-005
1000
12
3/8 - 16 UNC
1.57
1.61
0.35
0.71
4.02
2.56
0.90
HR1251/213250YO-5P
8-204-010
2500
28
1/2 - 13 UNC
2.56
2.32
0.59
0.75
6.26
4.13
3.70
* HR1251/2133YO-5P
8-204-010L
2500
28
1/2 - 13 UNC
2.56
2.32
0.59
1.26
6.26
4.13
3.70
HR1255/81125SWYO-5P
8-204-019
4000
60
5/8 - 11 UNC
2.56
2.32
0.59
0.74
6.26
4.13
4.00
* HR1255/811325YO-5P
8-204-019L
4000
60
5/8 - 11 UNC
2.56
2.32
0.59
1.75
6.26
4.13
4.00
HR1253/410275YO-5P
8-204-021
5000
100
3/4 - 10 UNC
2.56
2.87
0.59
1.24
6.26
4.13
4.00
* HR1253/410325YO-5P
8-204-021L
5000
100
3/4 - 10 UNC
2.56
2.87
0.59
1.73
6.26
4.13
4.20
HR1253/4103YO-5P
8-204-030
7000
100
3/4 - 10 UNC
3.35
2.87
0.59
0.87
6.26
5.28
8.80
* HR1253/410375YO-5P
8-204-030L
7000
100
3/4 - 10 UNC
3.35
2.87
0.87
1.87
8.03
5.28
9.50
HR1257/8935YO-5P
8-204-042
8000
160
7/8 - 9 UNC
3.35
2.87
0.87
1.43
8.03
5.28
9.30
* HR1257/89425YO-5P
8-204-042L
8000
160
7/8 - 9 UNC
3.35
2.87
0.87
2.37
8.03
5.28
9.70
HR12518350YO-5P
8-204-045
10000
230
1 - 8 UNC
3.35
2.87
0.87
1.36
8.03
5.28
9.70
* HR125184.5YO-5P
8-204-045L
10000
230
1 - 8 UNC
3.35
2.87
0.87
2.36
8.03
5.28
10.10
HR12511/4741/2YO-5P
8-204-070
15000
470
1-1/4 - 7 UNC
3.95
3.15
1.00
2.25
8.58
6.30
14.50
HR12511/2665YO-5P
8-204-125
24000
800
1-1/2 - 6 UNC
4.72
4.29
1.38
2.17
12.09
8.66
35.20
HR12524565YO-5P
8-204-135
30000
1100
2 - 4-1/2 UNC
4.72
4.29
1.38
3.01
12.09
8.66
35.20
La charge minimale de rupture est égale à 5 fois la charge maximale d’utilisation.
* Les boulons longs sont conçus pour les pièces en métal dou.
